Bronze to Silver ETL Pipeline with SQL

This guide demonstrates how to implement a silver pipeline consuming from a bronze table created by Onehouse stream capture using Hudi and SQL. The workflow transforms raw change data (users_pii) into a curated Silver table (users_from_sql) using Hudi's Merge-On-Read (MOR) capabilities and SQL MERGE operations.

Use Case​

We want to:

  • Ingest change events from a raw table on-demand.
  • Clean, deduplicate, and apply only the latest changes using a pre-combine key.

Pre-requisites​

  • Raw/Bronze table users_pii created by Onehouse stream capture
  • Create a cluster with "Cluster Type" as "SQL"

Step-by-Step Instructions​

Step 1: Inspect the Source Table​

Read from the raw/bronze Hudi table that stores incoming change data.

SELECT * FROM otcarp.users_pii up;

Step 2: Create the Silver Table​

Use Hudi's Merge-On-Read format to enable upserts and snapshot queries. This table holds the cleaned and deduplicated view of your user data.

CREATE TABLE otcarp.users_from_sql (
    _change_operation_type STRING,
    _upstream_event_processed_ts_ms BIGINT,
    db_shard_source_partition STRING,
    _event_origin_ts_ms BIGINT,
    _event_tx_id BIGINT,
    _event_lsn BIGINT,
    _event_xmin BIGINT,
    id INT,
    name STRING,
    ssn STRING,
    email STRING,
    signup_date TIMESTAMP
)
USING hudi
TBLPROPERTIES (
    type = 'mor',                  -- Merge-On-Read storage for incremental updates
    primaryKey = 'id',             -- Record key for upserts
    precombineField = '_event_lsn' -- Deduplicate using latest LSN
)
LOCATION 's3a://lakehouse-albert-us-west-2/demolake/otcarp/users_from_sql';

Step 3: Merge Incoming Changes​

Use a SQL MERGE INTO operation to apply inserts and updates from the raw table.

MERGE INTO otcarp.users_from_sql AS target
USING (
  SELECT
    _change_operation_type,
    _upstream_event_processed_ts_ms,
    db_shard_source_partition,
    _event_origin_ts_ms,
    _event_tx_id,
    _event_lsn,
    _event_xmin,
    id,
    name,
    ssn,
    email,
    signup_date
  FROM otcarp.users_pii
) AS source
ON target.id = source.id
WHEN MATCHED THEN UPDATE SET *         -- Update record if ID already exists
WHEN NOT MATCHED THEN INSERT *;        -- Insert new records

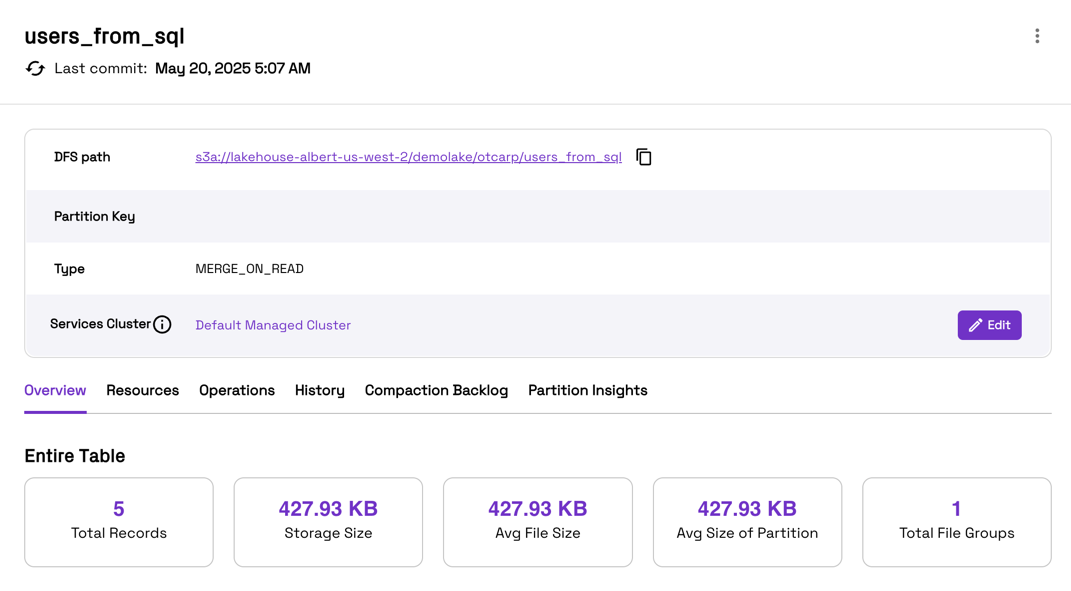

Once this query succeeds, your table will be available in the Onehouse Data Catalog. target.png

Step 4: Query the Silver Table​

From within the SQL Endpoint, you can now query the Silver table to see the silver table data.

SELECT * FROM otcarp.users_from_sql;

From external tools like Athena, you can query the Silver table using the following SQL:

SELECT * FROM "AwsDataCatalog"."otcarp"."users_from_sql_ro" limit 10;


Next Steps​

If you want to automate this process, you can use an orchestration tools like Dagster and Airflow to schedule the SQL ETL pipeline.
