Advanced Monitoring

Overview​

Onehouse offers advanced monitoring that provides rich metrics about your deployment by exposing a Prometheus within your cloud environment.

In addition to exposing the metrics, Onehouse provides pre-built Grafana dashboard templates for use cases such as Stream Capture lag monitoring.

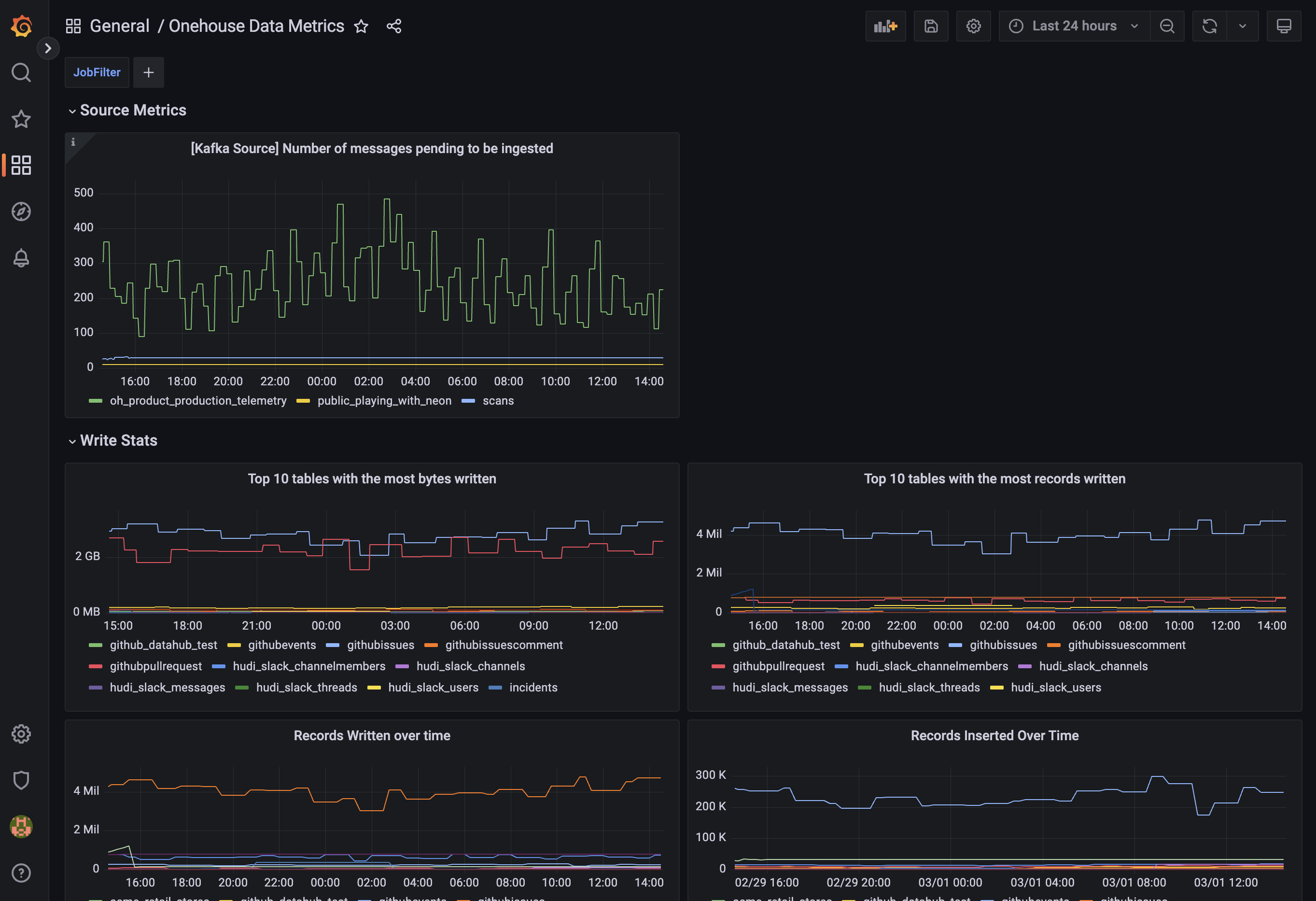

Examples of metrics exposed via Grafana.

Set up Advanced Monitoring​

Onehouse already deploys and manages Prometheus within your VPC. You can connect to Prometheus using an IP address provided by the Onehouse team. Reach out to the Onehouse team to request your IP.

Addresses are associated with load balancers within your cloud account, so make sure the IP addresses are within internal IP ranges.

After you've received access to Prometheus, you can pull the metrics into a self-managed Grafana instance within your environment. Onehouse will provide you Grafana dashboard templates with useful charts out-of-the-box.

Configure Grafana Alerts​

After you have set up advanced monitoring in Grafana, you can configure Grafana alerts that are triggered by your Onehouse metrics. Follow these Grafana docs to configure alerts.

You can get started with the following alert query templates:

  • Alert on >3 consecutive lags for a stream
    sum by(table, database) (ohds_deltastreamer_numConsecutiveSyncLags) > 3
    Or to exclude a table:
    sum by(table, database) (ohds_deltastreamer_numConsecutiveSyncLags{database!="database_name", table!="table_name"}) > 3
    You can exclude multiple databases or tables by using | to separate the different values
  • Alert when an in-progress sync is taking >3x longer than the configured sync frequency
    (sum by(table, database) (ohds_deltastreamer_syncDurationSecs))/(sum by(table, database) (ohds_deltastreamer_syncIntervalSecs)) > 3

Use Cases​

Write Stats​

Monitor write operations across your Stream Captures and Tables. Charts included:

  • Tables with Most Bytes Written: Top tables by bytes written, including write amplification.
  • Tables with Most Records Written: Tables with most records written, including record inserts, updates, and deletes.
  • Total Bytes Written: Total bytes written, including write amplification.
  • Records Written over Time: Records written, including inserts, updates, and deletes.
  • Records Inserted over Time: Records written, filtered to inserts.
  • Records Upserted over Time: Records written, filtered to upserts. Note that a single record may have multiple upserts.
  • Records Deleted over Time: Records written, filtered to deletes.

Lag Monitoring​

Monitor the lag of write operations. Charts included:

  • Data Pending to be Ingested (from Kafka source): Volume of Kafka messages in the source topic that have NOT been ingested yet.
  • Sync Duration vs. Configured Sync Frequency: Sync Duration refers to the full time for a sync to process all data remaining in the source (including reading, writing, and syncing data to the catalog). Sync Frequency is the minimum interval for the Stream Capture to trigger each sync. If Sync Duration is greater then the Sync Frequency, the Stream Capture may be delayed.
  • Stream Captures with Longest Sync Durations: Sync Duration refers to the full time for a sync to process all data remaining in the source (including reading, writing, and syncing data to the catalog). Filtered to the top 10 Stream Captures by Sync Duration.
  • Number of Consecutive Sync Lags: Describes how many syncs in a row the Sync Duration was greater than the configured Sync Frequency for a Stream Capture.
  • Absolute Time of the Last Sync: Sync Duration for the last Stream Capture sync.
  • Number of Sync Failures: Describes how many syncs failed for a Stream Capture. Note that Stream Captures will retry a sync upon failure, then will move to the Failed state after several failed attempts.

Table Services Monitoring​

Monitor table service runs. Charts included:

  • Compaction, Clustering, and Cleaning Duration for All Tables: Duration of each table's most recent run of the Compaction, Clustering, or Cleaning service.
  • Compaction, Clustering, and Cleaning Duration for Top Tables: Duration of each table's most recent run of the Compaction, Clustering, or Cleaning service. Filtered to the top 10 tables by duration.
  • Bytes Written by Compaction and Clustering Commits: Data volume written in each table's most recent run of the Compaction or Clustering service.
  • Number of Partitions Touched by Compaction and Clustering Commits: Partitions with at least one write in each table's most recent run of the Compaction or Clustering service. Large numbers may indicate an inefficient partitioning scheme.
  • Number of Files Deleted by Cleaning: Files deleted in each table's most recent run of the Cleaning service.

OCU Usage​

This dashboard provides a breakdown of the OCU usage across all Stream Captures and Table Services.

Charts included:

  • OCU Usage Per Resource: Percentage of OCU used by each Stream Capture and Table Service.
    • If you have S3 or GCS sources, you will see a "metadata" job in the chart. Onehouse deploys one metadata job per bucket to monitor new files to be ingested.
  • OCU Usage Per Operation Type: Aggregate OCU usage breakdown by table service type.
