Connecting your AWS account

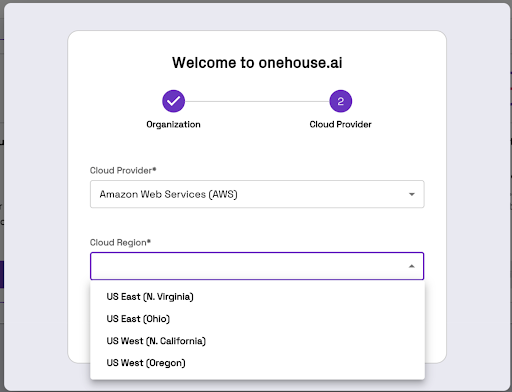

Enter your cloud account provider and region correctly into the following prompt screen

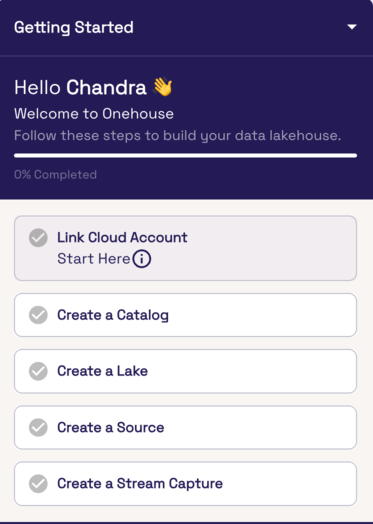

Link your AWS account

You will follow a 4-step wizard. Click on Link Cloud Provider to get started.

Link your account

You can use either Terraform or Cloudformation for linking your AWS account.

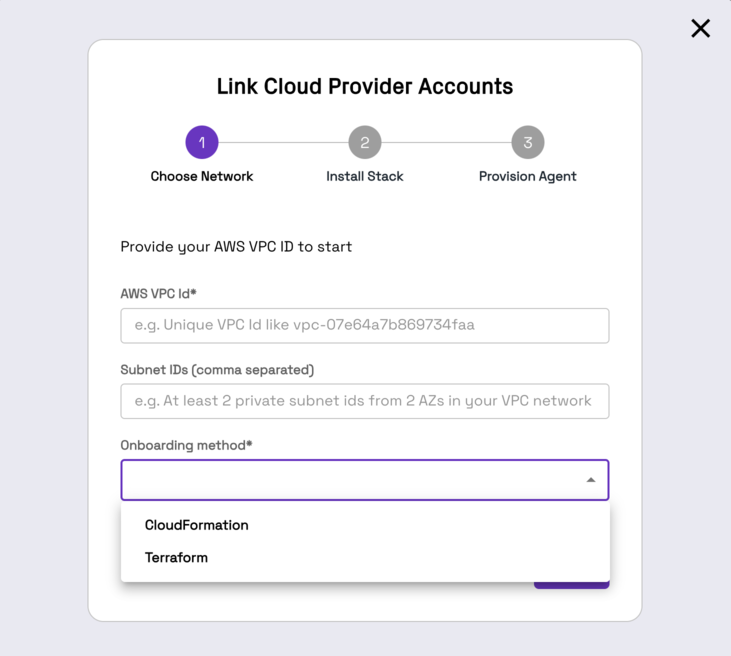

Provide the VPC ID for the AWS VPC that you would like to deploy the Onehouse Lakehouse into, two private subnets within that VPC, and choose your IAC method.

Execute Infrastructure as Code

Details for running the infrastructure as code to deploy the Onehouse Data Plane for both Terraform and Cloudformation are in the below dropdowns

Terraform

Install Terraform Stack

To install the Terraform stack, you will need administrator-like privileges, and you would need to have the token shared by the Onehouse team.
The Terraform script would generate IAM roles and attach policies.

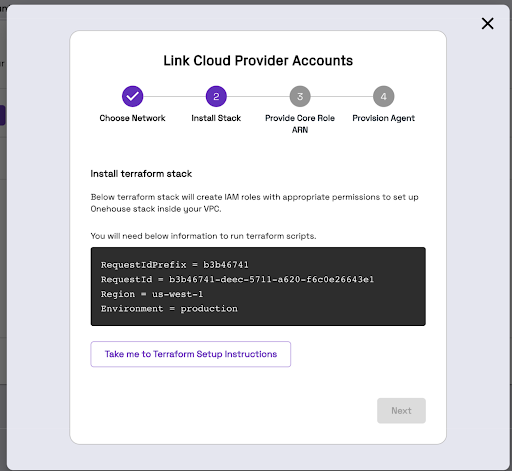

You should see a screen like below.

1. Our terraform module is hosted on private registry. To access it, you would need a TF cloud token. You can reach out to your Onehouse POC to get one. Then use that to authenticate with Terraform Cloud.
2. You can use the terraform module in your own CI/CD system. Below example shows how you can run this module in Linux or UNIX environment.
3. Create a directory with the following structure in a Linux or UNIX environment. You will need to have this environment (either a cloud machine or a local machine) authenticated to your AWS account.:

   my-terraform-project/
   ├── main.tf
   ├── variables.tf
   └── backend.tf

1. The template for these files are given below:

backend.tf

Update REQUEST_ID_PREFIX AND REGION.

terraform {
   required_version = "1.11.0"
   required_providers {
     aws = {
       version = "5.82.0"
     }
   }
   backend "s3" {
     bucket = "onehouse-customer-bucket-${REQUEST_ID_PREFIX}"
     key    = "onboarding/terraform/preboarding/onehouse.tfstate"
     region = "${REGION}"
   }
}

provider "aws" {
    region = "${REGION}"
}

main.tf

Update the VERSION OF THE TERRAFORM MODULE

module "customer-stack" {
    source  = "app.terraform.io/Onehouse/customer-stack/aws"
    version = "${VERSION OF THE TERRAFORM MODULE}"
    # insert required variables here
}

bastion host requirement:

Creating a bastion host is mandatory to access the cluster. In order to do so, enable the bastionHostConfig flag under ec2Config while passing the parameters and provide the vpcID and privateSubnetID. The details of the ec2Config is provided in the table below.

The variables are explained as below:

Variable	Description	Default Value
productFlow	product flow. Possible values: core, lite	core
region	[Required] Region of the EKS cluster
	Eg: region = "us-west-2"
requestId	Onehouse requestId. Either provide this directly or provide secretArn of the secret containing the requestId.
requestIdSecretManager	Provide the requestId using a secret manager (enabled + secretArn).	enabled = false
environment	[Required] Onehouse environment. Possible values: production
	Eg: environment = "production"
s3BucketArns	[Required] S3 bucket ARNs to restrict Onehouse access. Bucket ARN Example - arn:aws:s3:::<bucket_name>
	Eg: s3BucketArns = ["arn:aws:s3:::onehouse-customer-bucket-1a234567", "arn:aws:s3:::onehouse-customer-bucket-2b345678"]
s3KmsKeys	[Optional] KMS key ARNs for encrypted S3 buckets. Only required when encryption is enabled on S3 buckets	s3KmsKeys = [] : empty list
s3DataLoad	Enable s3DataLoad if you want to load existing data (JSON, CSV, Parquet etc.) from S3. If enabled, script asks for permissions to access SNS/SQS. Bucket ARN Example - arn:aws:s3:::<bucket_name>. You can add multiple bucket ARNs	s3DataLoad = { enabled = false }
	To enable: Eg: s3DataLoad = { enabled = true, s3DataSourceBucketArns = ["bucket1_arn", "bucket2_arn"] }
mskDataLoad	Enable mskDataLoad if you want to capture data from Amazon Managed Streaming for Apache Kafka (MSK)	mskDataLoad = { enabled = true }
databaseDataLoad	Enable databaseDataLoad if you want to load data from databases (postgres, mySQL etc.), data will be streamed via an MSK cluster provisioned in your account. If you are enabling this flag, make sure to enable mskDataLoad as well.	databaseDataLoad = { enabled = true }
glueSync	Enable glueSync if you want to sync to AWS Glue	glueSync = { enabled = true}
secretsManagerConfig	Specifies the permissions to secrets/secrets-manager in the cloud account for connecting to datasources and external entities.
	Supported values:
	- "OMS": [DEFAULT] Onehouse managed secrets. Users input credentials (username/password, API keys, etc.) via the Onehouse UI or API. Credentials are stored in the Onehouse management layer outside the customer cloud account. Users can update credentials or rotate keys using supported edit flows in the Onehouse UI.
	- "BYOS": [RECOMMENDED] Bring your own secret. Users create, update, and delete secrets in the Secrets Manager in their customer cloud account. The secret must have the tag "accessibleTo" set to "onehouse". Secrets for different resources must be stored in a predefined JSON format as defined in Onehouse documentation. The eks_node_role will be granted read permissions to secrets tagged with "accessibleTo" set to "onehouse".
ascp	Enable mounting Onehouse secrets directly from AWS Secrets Manager	ascp = { enabled = false }
aclSync	Enable aclSync if you want to sync ACL settings across multiple meta-stores via onehouse. If this option is enabled, lakeformation data-lake settings will be updated. Please check the terraform output to "module.acl_node_role_access_policy[0].null_resource.add_node_role_to_datalake_admin" to view the existing settings.	aclSync = { enabled = false }
lockProviderConfig	Specifies the permissions to DynamoDB table for using it as lock for observed data lake tables.	lockProviderConfig = { enableDynamoDB = true }
	Usage: lockProviderConfig = { enableDynamoDB = true }
ec2Config	Configuration for EC2 access/diagnostics. All options (bastion host, diagnostic host, and private link) must always be enabled. Need to provide the same VPC ID and private subnet ID as your EKS cluster.	ec2Config = { vpcID = "${vpcId}", privateSubnetID = "${privatesubnetID}", privateLink = { enabled = true, privateLinkSubnets = ["${privateSubnetID1}", "${privateSubnetID1}", . . .] }}
	Need to provide vpcId and privateSubnetIds. They are mandatory
integrations	Create an AWS Secret named onehouse-datadog-api-key with the tag accessibleTo=onehouse, and store the Datadog API key in it.	integrations = { enableDatadog = false, enableGuardduty = false }
karpenterSupport	Enable Karpenter support	karpenterSupport = { enabled = true }
customerRoleArns	[Optional] customer role to access EKS clusters	[]
customAmiSupport	Enable custom api support	customAmiSupport = { createEbsKmsKeyArn = true, ebsKmsKeyArn = "" }

1. Create a S3 bucket to hold Terraform artifacts: onehouse-customer-bucket-<RequestIdPrefix>. RequestIdPrefix is provided as one of the input parameters in order for Terraform to initialize a working directory, configure the backend, download the providers etc.
   Note: Do not manually update the number of nodes in your Kubernetes cluster. Onehouse will automate this for you. Modifying the stack may prevent Onehouse from functioning properly.

Migrating Existing Terraform Stack into using Private Registry Modules

In case you already have a terraform stack and all the resources have already been created, the only step which has to be executed is to migrate the Terraform Modules to use the new name.

Migration Script:

Purposefully, the line terraform state mv has been commented below. First you can run the script which will print all your modules are correctly getting moved. Post that, you can uncomment the line and move all your terraform resources.

#!/usr/bin/env bash
set -euo pipefail

if [ $# -ne 1 ]; then
echo "Usage: $0 wrapper_module_name"
exit 1
fi

WRAPPER=$1

terraform state list | while read -r resource; do
# Prepend module.<WRAPPER>. to everything
new_resource="module.${WRAPPER}.${resource}"
echo "Moving: $resource -> $new_resource"
#terraform state mv "$resource" "$new_resource"
done

Run Terraform Stack

Follow the steps below:

terraform init --reconfigure
terraform plan
terraform apply

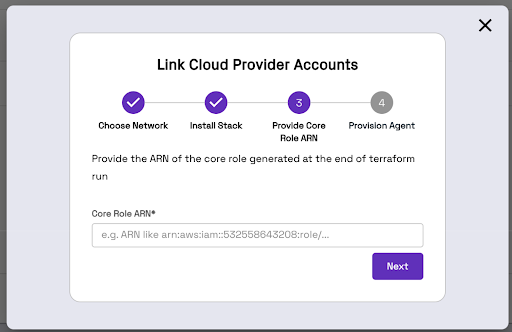

Terraform will generate an IAM Role ARN. Copy/Paste this ARN into the Onehouse UI.

Cloudformation

Install Cloudformation Stack

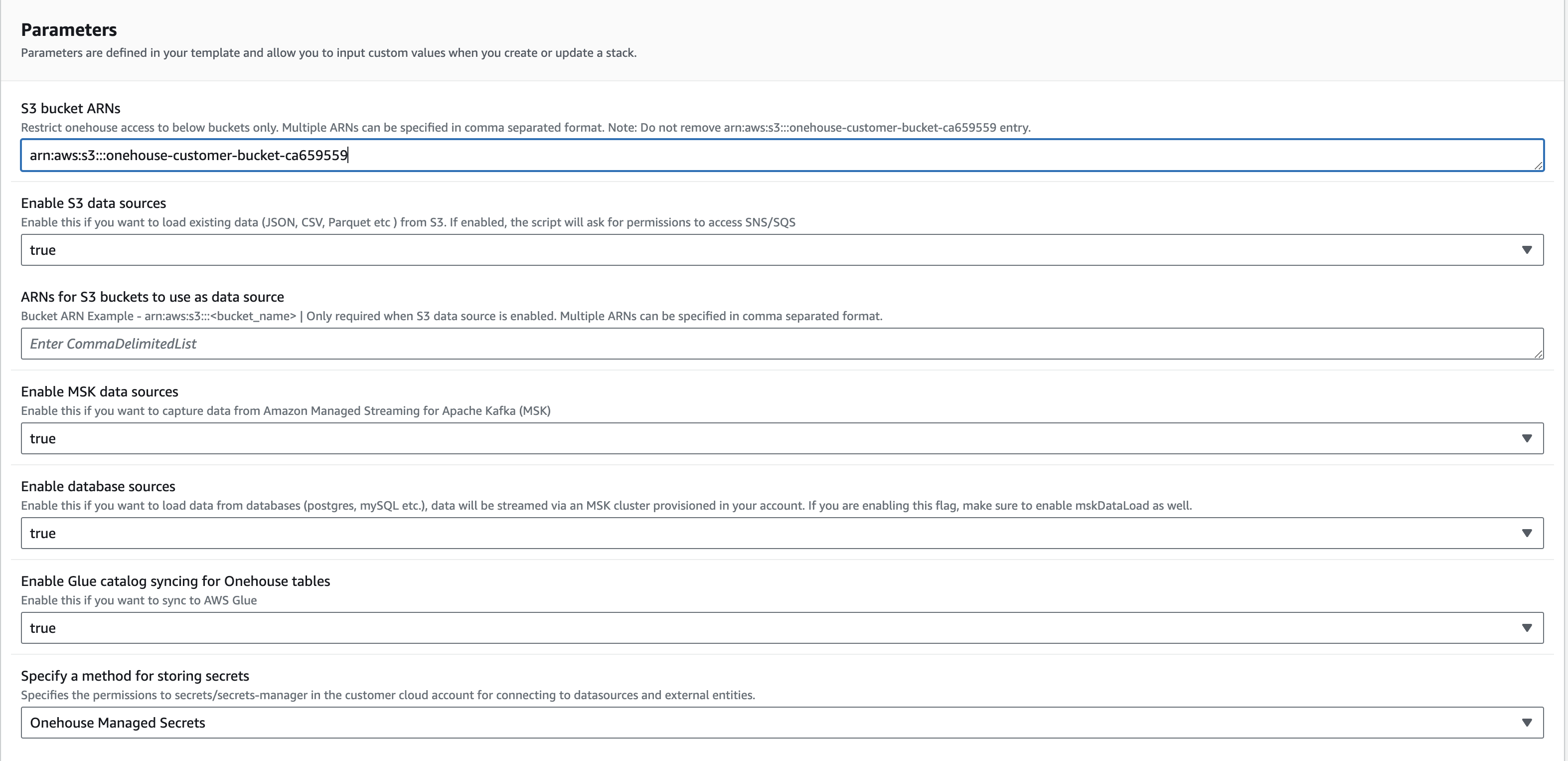

Click on "Take me to AWS Cloudformation" and then fill out the Parameters section of the Cloudformation UI according to your needs. WARNING: Do not change the name of the Cloudformation Stack. We use the defined name to monitor the onboarding process.

Click on Create Stack for Cloudformation to create all the needed resources. Once the stack is created, go back to the Onehouse UI and click on Next for the Onehouse Lakehouse resources to be deployed.

Provision Agent

The Onehouse data plane stack creation will start automatically. Once finished, the wizard will close and you will see 1 row in the Connections > Cloud Accounts page. This step will take up to ~30 mins to finish depending on how long AWS takes to create a Kubernetes cluster. If it fails, please reach out to Onehouse for help. If it fails, you can safely retry this flow from the beginning. Your AWS account is now linked!
